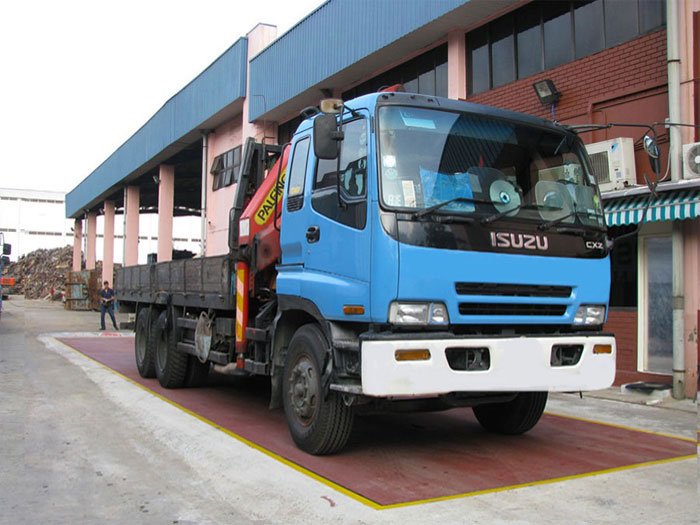

Pit Type Weighbridge

Pit Type Weighbridge

SK Engineering System is one of the leading manufacturer, supplier and exporter of pit type and electronic weighbridge in Ahmedabad, Gujarat, India. We are best in weighbridge due to our error free machine and quality service.

Suitable, where Space is a limitation, as ramps are not required.

Flush to ground level

Designed for rigorous and harsh environment and heavy vehicle usage.

Smooth movement of vehicles on platform.

Wide flanged beams and other structural members are accurately fabricated and built to excel quality engineering standards for durable and accurate performance.

• 1
• Robust Load Cells and Digitizers The most important components of an electronic weighbridge are the load cells and digitizers. SKE has made both of them very robust and hence, the best available in the country.

• 2
• Highly Durable Girders and Plates A truck to be weighed is directly driven to the platform of a weighbridge and hence, the platform is subjected to the entire load and vibrations created by a moving truck. Our weighbridge platforms (made of steel) are designed very carefully to withstand these loads without damage and is highly durable. The girders and plates used in our platform are selected very carefully and undergoes stringent quality checks.

• 3
• Reliable Mounting Assembly for Load Cells The next most important component is the mounting assembly for load cells. This transfers the load from the platform to the load cells. This is a cradle assembly which is free to move in the horizontal axes and hence takes all side loads generated due to the vehicular movements on the platform. The mounting assembly consists of three parts namely , the Bottom Plate, Rocker assembly and Top Bracket.

• 4
• Low Resistance Cables and Weather Proof Junction Box The signal from the load cells (in milli-volt) is carried to the digitizer, in the control room, through a 4 - core shielded cable. The cable has a very low electrical resistance and hence, no loss of signals. The cables from different load cells , in a weighbridge, meets in a weather proof junction box. The junction Box is of fully molded type and houses the necessary terminal blocks for interconnection of load cell out puts. The Junction box also carries a set of surge arrestors, to protect the entire system from lightning and electrical surges.

• 5
• Truck Position Sensor ( TPS ) SKE has unleashed Truck Position Sensor (TPS) a unique system, to check the position of a truck on the platform.
  The Truck Position Sensor ensures that the truck is completely on the platform, and no part of the tyre is protruding outside. This totally eliminates the chances of manipulating the weight reading, by partially keeping the truck tyre, outside the Engineering platform. If a portion of the tyre is outside the Engineering platform, the system will refuse to display any reading.
